Glazed Tiles Roll Forming Machine

2022-05-17 10:37:28
188Second-rate

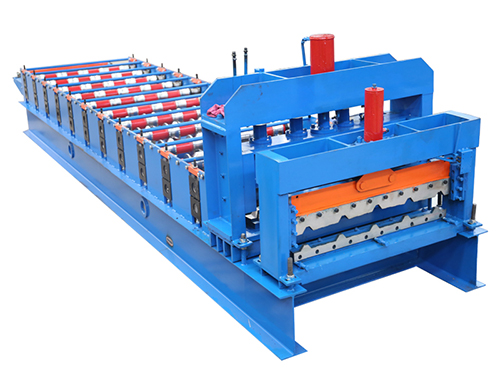

Glazed Tiles Roll Forming Machine
Detailed introduction:

Basic Info Model No.:sheet metal Usage:Roof Panel Roll Forming Machine Material Width:914mm Driving Of Machine:By Chain Additional Info Productivity:25sets/Month Place of Origin:China Supply Ability:25sets/Month Product Description Sheet Metal Roll Forming Machine Roll forming has many cost advantages over brake forming and preformed panels.If you are not familiar with what roll forming can do for your bottom line,

Basic Info

Model No.:sheet metal

Usage:Roof Panel Roll Forming Machine

Material Width:1220mm

Driving Of Machine:By Chain

Additional Info

Productivity:25sets/Month

Place of Origin:China

Supply Ability:25sets/Month

Product Description

Sheet Metal Roll Forming Machine

Roll forming has many cost advantages over brake forming and preformed panels.If you are not familiar with what roll forming can do for your bottom line,here are just a few of the savings you can expect…

No Expensive Shipping and Crating of Long Panels

(Have coils delivered right to your shop or jobsite)

No Panel Shipping Damage and Extensive Delays

(Just try to order one replacement panel from the factory)

Less Labor and Waste

(Run your panels to the exact length without time and material waste)

Work On Your Own Schedule–Not The Factory’s

(When roof is ready—just run your panels)

Form Perfect Panels To Any Length

Technology parameters:

The weight of machine is about3.1tons.The total dimension of machine:7800(L)*1600(W)*1500mm(H)

2.1 Manual decoiler:

Capacity of uncoiler:5tons

Expansion of segment:Manual

Rotation of segment:Manual

Number of segment:4

Range of segment expansion:480-520mm

Operation method:Manual

2.2 Guiding system:

To keep the material straight

Entrance and adjustable wheel:2rolls

Qty:1

2.3Main forming machine:

Coil thickness:0.3-0.7mm

motor type:3 phase asynchronous motor

Main motor power:4kw+3kw(normal speed),

Approx.16 groups roller including

Roller:S45C with quenching treatment,Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.

Shaft:Diameter of max shaft:ø70mm(hardening and tempering)

Transmission type:by one inch chain

2.4 Hydraulic cutting:

Material of blade:Cr12Mov,HRC58-62

Length measuring:Automatic encoder length measuring

Type of cutting:Cutting after forming:Cut the sheet after roll forming to required length.No need to change mold for different sizes

Cutting motion:The main machine automatically stops and the cutting will take place.After the cutting,the main machine will automatically start.

Power of motor:3kw

2.5 Product support frame

Size:L 3m x W0.5m
